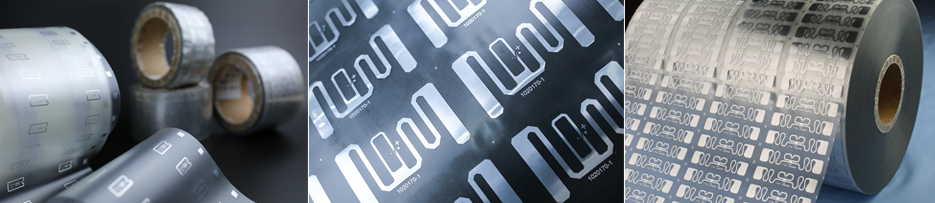

RFID Aluminum Etching UHFAntenna (UHF Antenna), one of our main products, working frequency 860-960MHz, normally is used in projects of Logistic Tracking, Retailing Supply Chain Management, Brand Apparel and Warehouse Management, etc.
For now, INLAYLINK manufactured 15 billion pieces RFID tag antennas sold worldwide, which help us get rich experience both in manufacturing and RFID field. No matter what you need, we can do well in the design and production of RFID tag antenna. Currently, our aluminum etching antenna's minimum line width and line space accuracy could reach 0.2mm.
Moreover, you can choose single row or multiple rows per roll as delivery web width.
| Material | Thickness | Substrate width | Delivery Width |
|---|---|---|---|
| Aluminium | 10μm | 350/406/470/560mm | Single Row or Multiple Row (Web width > 35mm) |
| PET | 50μm |
| Antenna Process | Minimum Trace Width | Minimum Trace Space | Frequency | Matched Chip | Instant Heat Resistance | Storage Temperature |
|---|---|---|---|---|---|---|
| Rol to Roll Aluminum Etched | 0.2mm | 0.2mm | 860~960 MHz | All RFID Wafers | 10 Seconds at 180°C | －5～25°C |
